LA20 Metal Connector Series

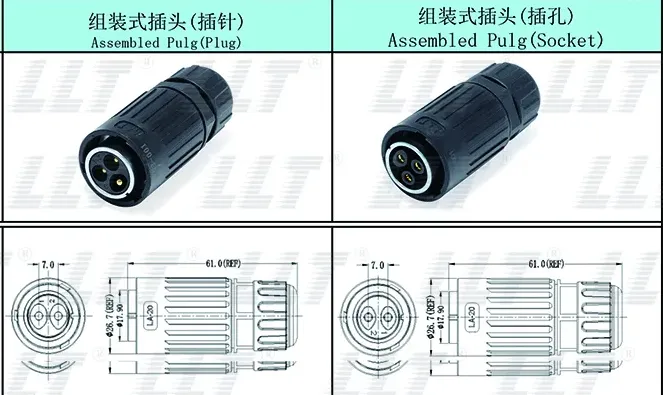

LA20 Assembly Plug LA20 Assembly Plug

LA20 Assembly Plug

Part Number
LLT-LA20-C02PE-03-001
Rated Voltage
500v
Rated Current
20A
Contact Terminal
⌀ 2.7mm
Cable Outer Diameter
⌀ 8.0-13.0mm
Mating Cycles
1500
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Diagram
↔

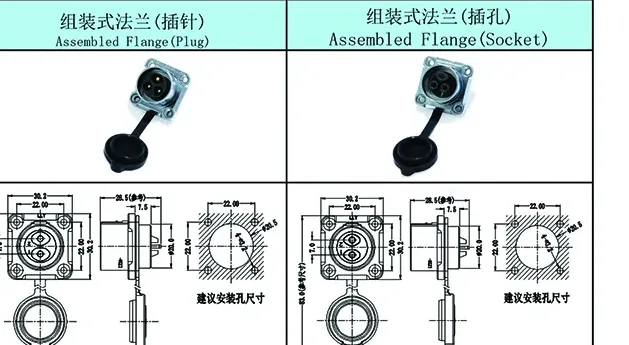

LA20 Assembly Flange (Socket) M16 Flanged Female Pin

LA20 Assembly Flange (Socket)

Part Number
LLT-LA20-C02SX-01-001
Rated Voltage
500v
Rated Current
20A
Contact Terminal
⌀ 2.7mm
Cable Outer Diameter
⌀ 8.0-13.0mm
Mating Cycles
1500
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Diagram

LT20 Metal Connector Series

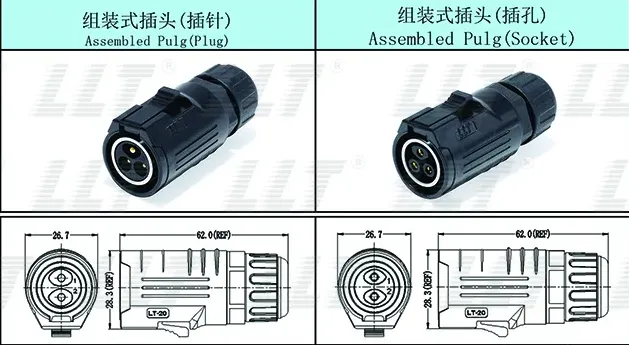

LT20 Assembly Male Plug LA20 Assembly Plug

LT20 Assembly Male Plug

Part Number
Rated Voltage
Rated Current
Contact Terminal
⌀
Cable Outer Diameter
⌀
Mating Cycles
Operating Temperature
Waterproof Rating
Pin Layout
Pin Layout
Pin Layout Diagram
↔
LT20 Assembly Female Plug M16 Flanged Female Pin

LT20 Assembly Female Plug

Part Number
Rated Voltage
Rated Current
Contact Terminal
⌀
Cable Outer Diameter
⌀
Mating Cycles
Operating Temperature
Waterproof Rating
Pin Layout
Pin Layout
Pin Layout Diagram

L25 Metal Connector Series

L25 Terminal Block M16 Flanged Female Pin

L25 Terminal Block

Part Number
LLT-L25-35002L0001
Rated Voltage
250v
Rated Current
35A
Contact Terminal
⌀ ≤4.0 mm²
Cable Outer Diameter
⌀ 10-16mm
Mating Cycles
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Diagram
